ZCUR
T-Box
ITCU
ZCUT
LCU
LCU
MCU
ZCUL
ITCU
ZCUF
LCU
LCU

· Meet the functional requirements of ECU full stack software under mainstream EEA3.0 architecture

· As a software platform, A ² OS provides middleware and tools for cross domain communication for ECU

· Significantly reduce technical barriers and improve  efficiency through AUTOSAR Agent and MBD Agent

· The SOA software development approach enables rapid pre validation of  functions on digital vehicles

Pull down view

Pull down view

CCU/HPC

Function

  • vehicle_control.pngvehicle control
  • ADAS.pngADAS
  • IVI.pngIVI
  • V2X.pngV2X
  • OTA.pngOTA
  • big_data.pngbig data
  • diagnosis.pngdiagnosis
  • other

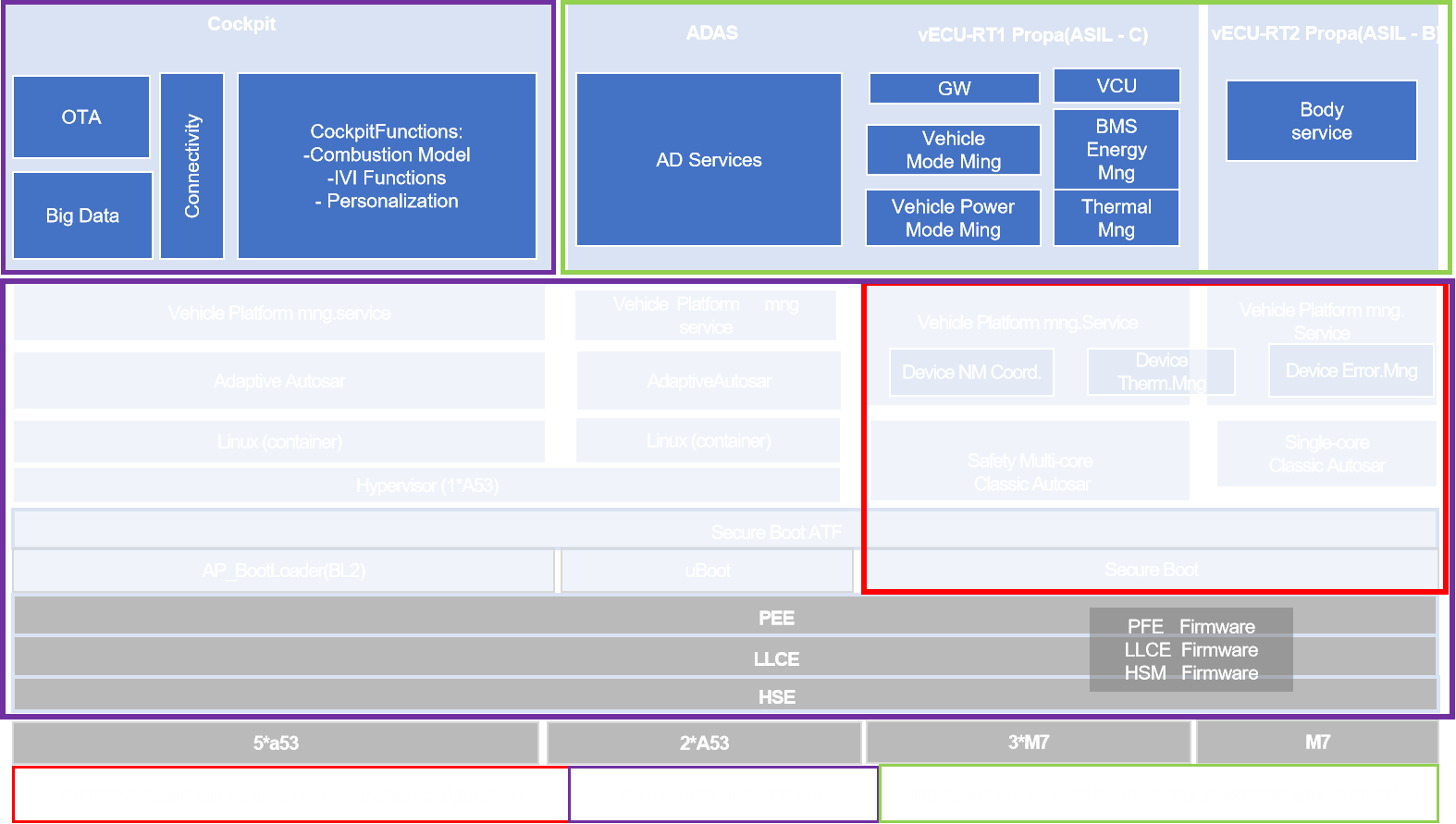

CCU/HPC Solution

Qualcomm 8295+NXP-S32G+J6 platform, multi controller fusion CCU software solution, using A² 0S Standard version to achieve cross domain intearation, high-performance computing capability, software and hardware decoupling. and suppot OTA upgrade



Features：

· Adopting KOTEI A²OS Standard for cross domain functional integration and software hardware decoupling to achieve efficient communication and data management

·Adapt to mainstream CP toolchains ,automatically configure BSW components through AUTOSAR Agent toreduce technical barriers and improve efficiency;

· Mature body control,vehicle control, and ADAS algorithms that can meet mass production applications, improved efficiency through MBD Agent for functional modeling generation

· Fully supporting the SOA protocoI (SOMEIP, DDS)provides an efficient andreliable bridge between upper layer applications and lower layer hardware.simplifies the application development process, and enhances the flexibility and maintainability of the system

· Supports CAN-FD and Ethemet to meet functional safety and information security requirements compliant with ASlL-Dlevel

Production case: AION :Hyper;


Pull down view

A²OS-TSN Solution

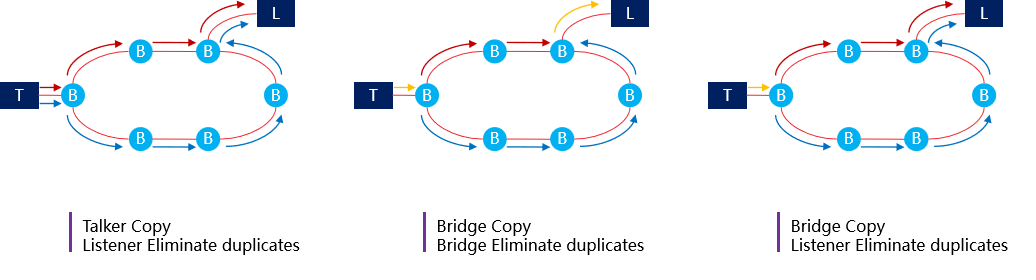

TSN Ring Network IEEE 802.1CB Frame Copy and Frame Elimination Technology

· CB ring network protocol can provide reliable communication support for L3+autonomous driving

· CB protocol has flexibility

· Can be deployed locally on the network

· Only critical information is replicated

· Potential Error Detection

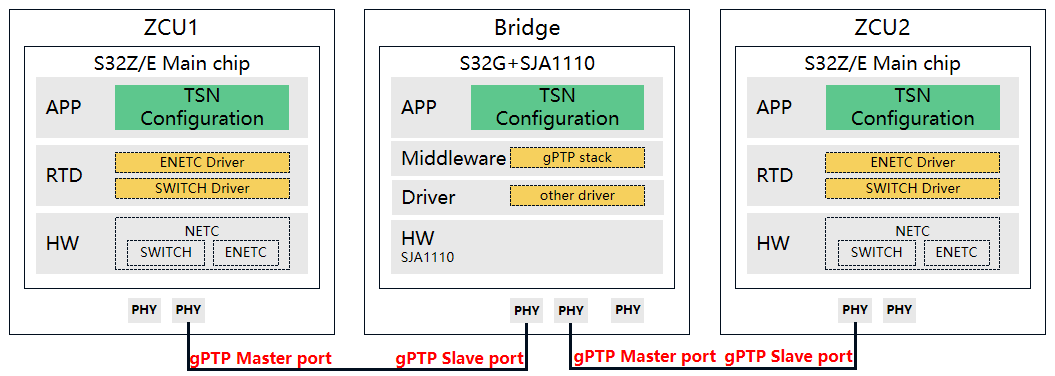

TSN Time Synchronization Solution

· TSN, as a part of the Ethernet protocol stack of A²OS, provides time synchronization strategy for the entire vehicle

· Provide a fully self-developed gPTP protocol stack for time synchronization of TSN terminals

· Based on the Base reference, the "S32Z/E gPTP bridge" protocol stack was customized for regional controller timing

· Based on S32G+SJA1110 platform TSN configuration software, achieve central gateway time synchronization



Pull down view

A²OS-TSN Solution

TSN Ring Network IEEE 802.1CB Frame Copy and Frame Elimination Technology

· CB ring network protocol can provide reliable communication support for L3+autonomous driving

· CB protocol has flexibility

· Can be deployed locally on the network

· Only critical information is replicated

· Potential Error Detection



TSN Time Synchronization Solution

· TSN, as a part of the Ethernet protocol stack of A²OS, provides time synchronization strategy for the entire vehicle

· Provide a fully self-developed gPTP protocol stack for time synchronization of TSN terminals

· Based on the Base reference, the "S32Z/E gPTP bridge" protocol stack was customized for regional controller timing

· Based on S32G+SJA1110 platform TSN configuration software, achieve central gateway time synchronization



Click the button below to view more information
